The 3-in-1 Extension Adapter for D/A Converter is an optional extension adapter. With it, you are able to connect all the 3 PEMF applicators (i.e., OmniMat, OmniPad, OmniSpot) and brainwave entrainment system – OmniBrain to the D/A converter simultaneously. It does not support concurrent use of the PEMF applicators though. The new adapter will require iMRSone 2.0 Omnium1 Tablet to work. However, it can support the use of older D/A converter (black colour version) with the new iMRSone 2.0 tablet.
If you are using the 3-in-1 adapter the first, time, note the following:

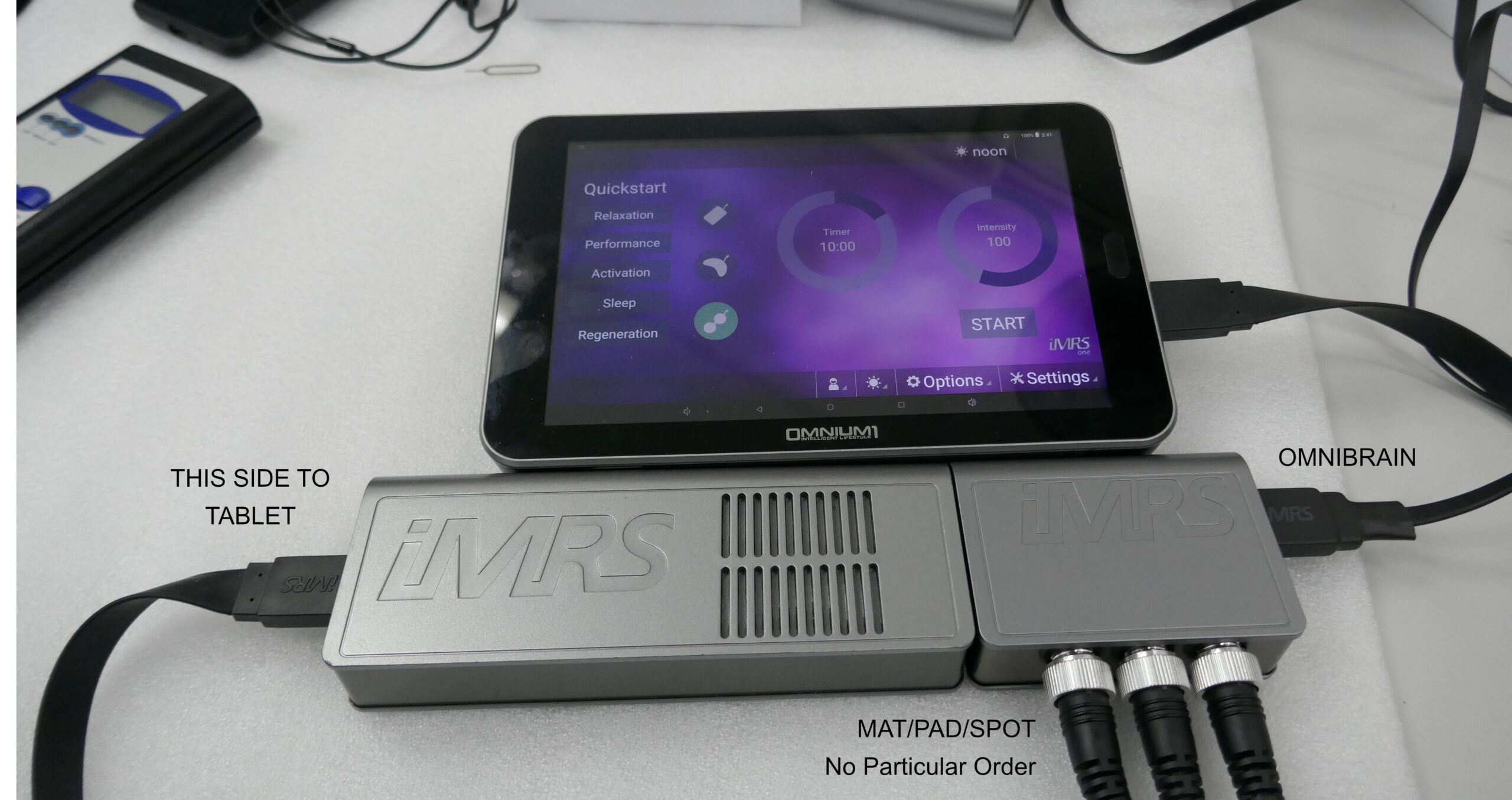

- 20-pin flat port assignment. Unlike the default D/A converter, the OmniBrain side must be plugged into the 3-in-1 adapter end as show in the diagram.

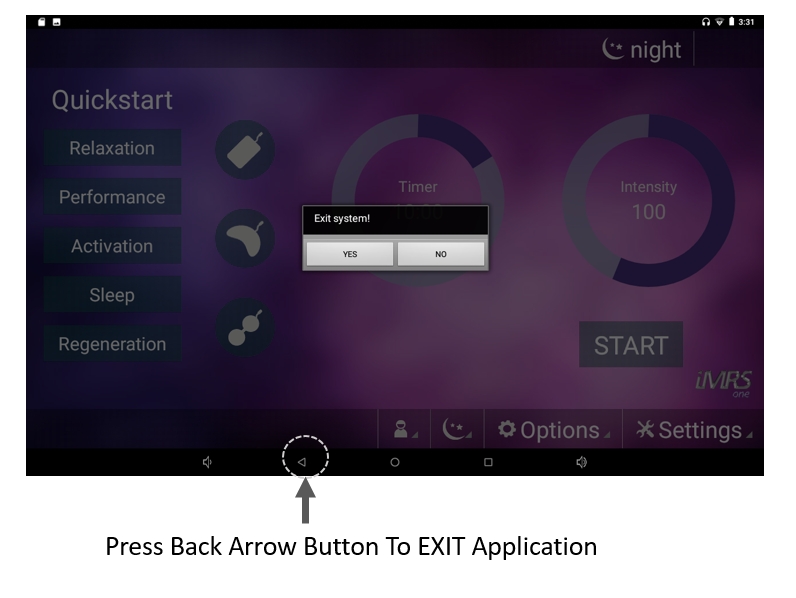

2. Perform a system reboot, or exit iMRSone application (see picture below) and relaunch it every time after you plug the 3-in-1 adapter into the D/A converter. This is to ensure the system can recognize the new hardware. Otherwise, you won’t be able to select the applicator on the main screen.
You are only required to perform (2) if you are using 3-in-1 adapter. If you are using standalone D/A converter, the system will automatically detect the last plugged in applicator.
